Advertising

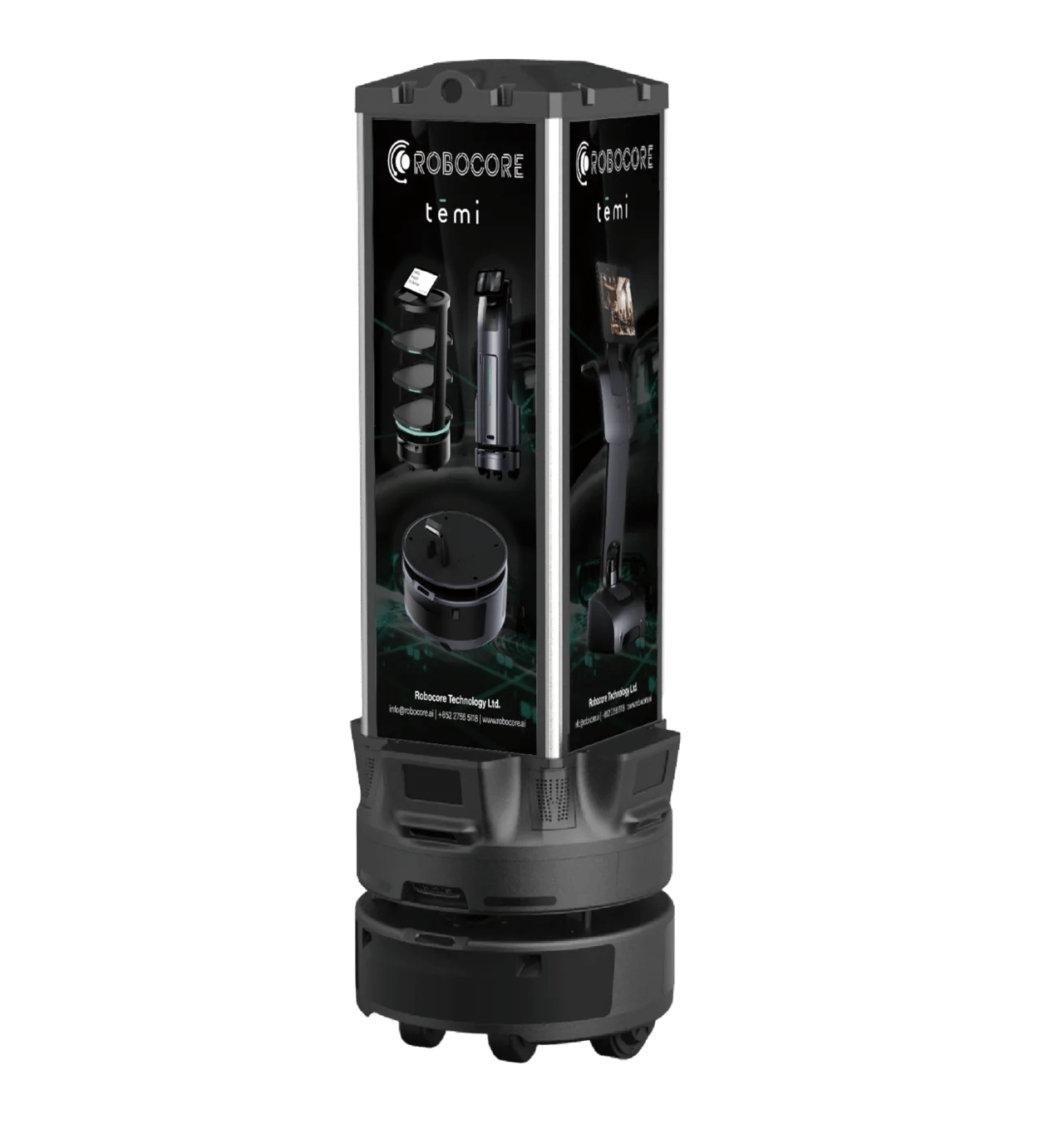

Robocore Fourcast
Mobile advertising robot built on temi Platform.
It offers high-performance regarding on autonomous navigation. Integrated with various functional modules, including four-side 38.8-inch screens, projectors, depth cameras, LiDAR, cliff sensers and camera. These modules enable the robot to deliver innovative and advanced advertising effect experiences to customers.
Specifications
Robocore Fourcast specifications
Weight
- Net Weight
- 150 lbs / 68 kg
Size
- Diameter
- 19.7 in. / 50 cm
- Height
- 58.3 in. / 148 cm
Mapping
- Map Size
- 215,278 sqf / 20,000 sqm
- No. of Locations
- 1000
Floor
- Max. Height of Barrier
- 0.47 in. / 1.2 cm
- Max. Slope Angle
- 5°
- Max. Gap Width
- 1.57 in. / 4 cm
Movement
- Linear Speed
- 3.2 ft. / 1 m per second
- Spin Radius
- 0 cm
Sensors
- Height of Detectable Obstacle
- 4.7 – 59 in. / 12 – 150 cm
- Detectable Ground Obstacle Range
- 1.9 – 47 in. / 5 – 120 cm
- Min. Height of Detctable Ground Obstacle
- 0.78 in. / 2 cm
- Min. Cliff Height
- 0.78 in. / 2 cm
- Lidar Range
- 114.8 ft. / 35 m
Screen
- Display Size
- 94 x 27 cm
- Resolution
- 1920 x 561
- Color Display
- 16.7 M
- Voltage
- 12 V
Camera
- Frame Rate
- 30 fps
- Resolution
- (Depth) 640 x 480 (RGB) 1280 x 800
- Distance
- 30 – 350 cm (subject to change with lightning condition)
Projection
- Area
- (44-52) x 42 cm
- Distance
- 45 – 90 cm
- Resolution
- 854 x 480
- Lumen
- 65 lm
- Voltage
- 5 V
Battery
- Operation Time
- (Normal Usage) 6 hrs (Heavy Usage) 4 hrs
- Charging 0 - 100%
- (Power OFF) 4 hrs (Power ON) 6 hrs
- Output Voltage
- (Upper component) 29 V (temi Platform, output to upper component) 19.6 – 28.7 V
- Capacity
- (Upper component) 40 Ah (temi Platform) 500 W
- Charging Voltage
- (Upper component) 25.2 V (temi Platform) 29.4 V
Charging Dock
- Size (L x W x H)
- 20 x 30.5 x 27.5 cm
- Weight
- 3.55 kg
- Input Voltage and Current
- 100 – 240 V 15 A
- Output Voltage and Current
- 29.4 V 20 A
External Battery
- Size (L x W x H)
- 50 x 50 x 6.5 cm
- Weight
- 8.65 kg
Support
- Conectivity
- Wi-Fi & 4G
- Web Interface
- Robot Intelligent Advertising Management Platform
(Note: All specifications are subject to change)
