Security & inspection

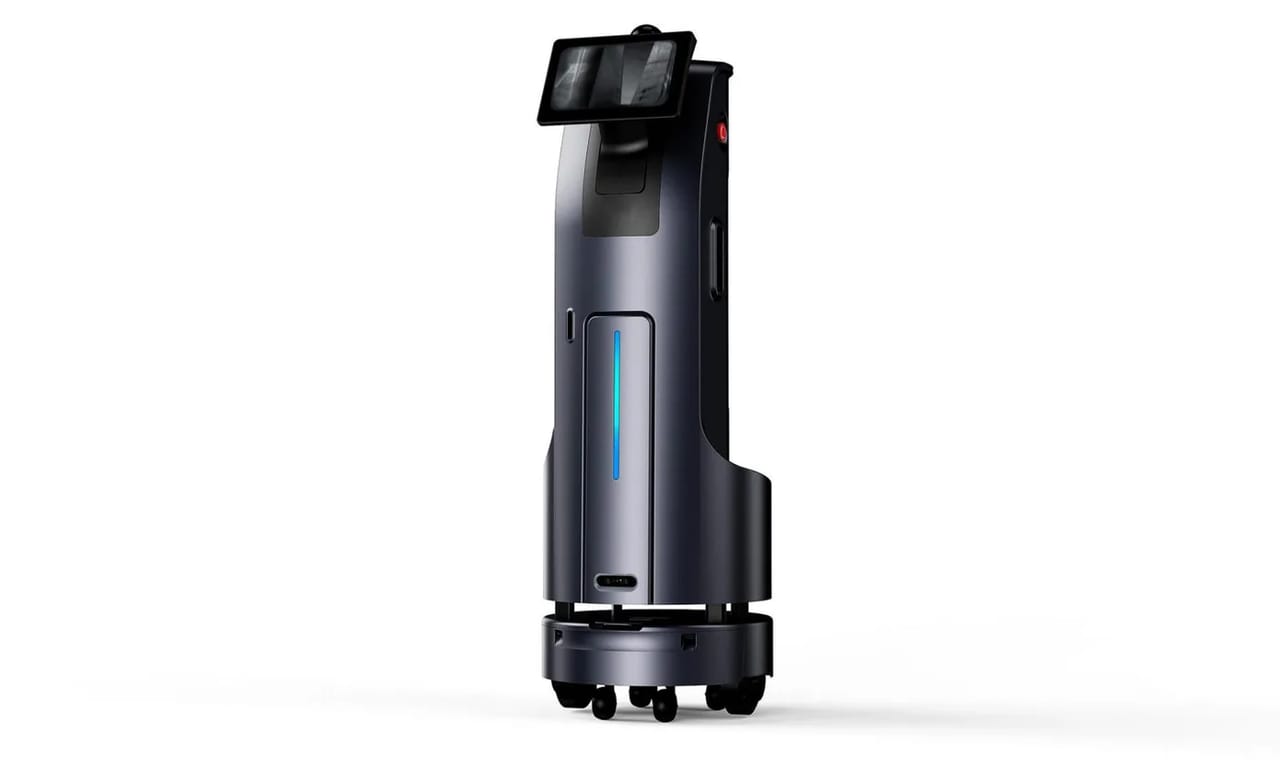

Robocore Blackjack
The security and inspection robot for property management.
Robocore Blackjack, the security and inspection robot integrated with temi platform, is equipped with adjustable height of sensors, vibration accelerometer and built-in 4K/360° dual-camera system. It can work automatically in various scenarios such as lift inspection, property management and security patrol.
Specifications
Robocore Blackjack specifications
Size
- Diameter
- 22.4 in. / 56.9 cm
- Height
- 58.74 in. / 149.2 cm
- Height (with elevator extension)
- 87.2 in. / 221.5 cm
- Net Weight
- 213 lbs / 96.55 kg
Work Environement
- Operating Temperature
- 0° – 55°
- Operating Humidity
- 30 – 70%
Mapping
- Map Size
- 215,278 sqf / 20,000 sqm
- No. of Locations
- 1000
Floor
- Max. Height of Barrier
- 0.31 in. / 0.8 cm
- Max. Slope Angle
- 8°
- Max. Gap Width
- 1.57 in. / 4 cm
Movement
- Linear Speed
- 3.2 ft. / 1 m per second
- Spin Radius
- 0 cm
- Positioning Accuracy
- 5 cm
Sensors (temi Platform)
- Height of Detectable Obstacle
- 4.7 – 59 in. / 12 – 150 cm
- Detectable Ground Obstacle Range
- 1.9 – 47 in. / 5 – 120 cm
- Min. Height of Detctable Ground Obstacle
- 0.78 in. / 2 cm
- Min. Cliff Height
- 0.78 in. / 2 cm
- Lidar Range
- 114.8 ft. / 35 m
Battery
- Operation Time
- (Normal Usage) 8 hrs (Heavy Usage) 3.5 hrs
- Standby
- 18 hrs
- Charging 0-100%
- (Power OFF) 4 hrs (Power ON) 5 hrs
- Output Voltage
- (Upper component) 3.3 / 5 / 12 V (temi Platform, output to upper component) 19.6 – 28.7 V
- Capacity
- (Upper component) 2000 W (temi Platform) 500 W
- Charging Voltage
- (Upper component) 29.4 V (temi Platform) 29.4 V
Charging Dock
- Size (L x W x H)
- 20 x 30.5 x 27.5 cm
- Weight
- 3.55 kg
- Input Voltage and Current
- 100 – 240 V 15 A
- Output Voltage and Current
- 29.4 V 20 A
Support
- Connectivity
- Web Interface
(Note: all specifications are subject to change)
